STABILIZED PLATFORM

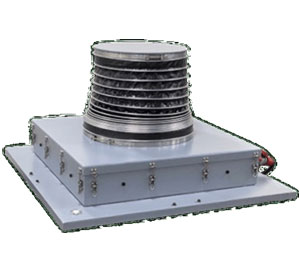

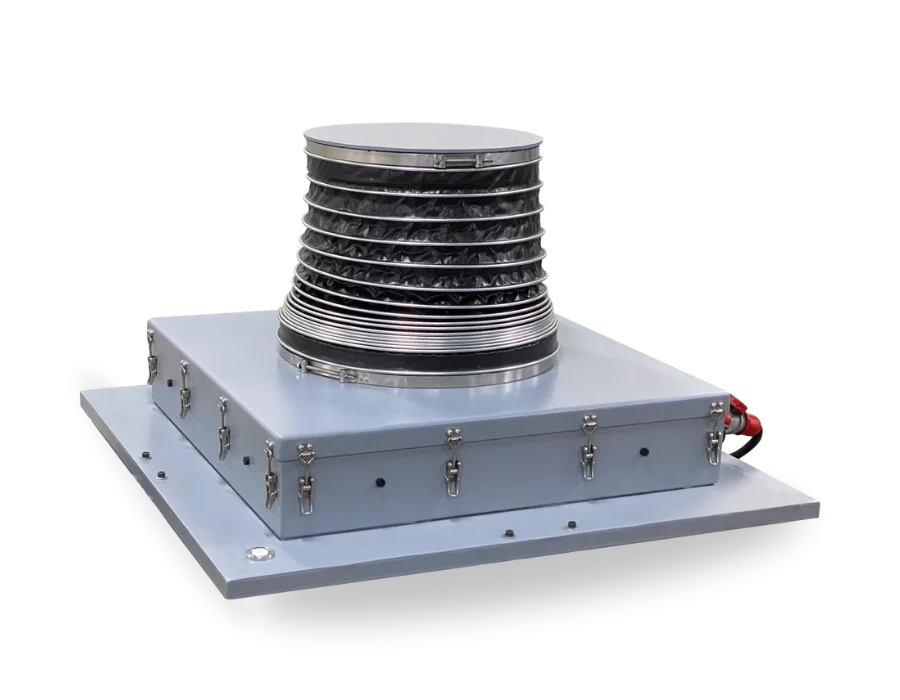

SM150 STABILIZED PLATFORM
Stabilizer150 – E2D is a precision 2DOF platform delivering accurate roll and pitch control with high responsiveness. Its 150 kg payload, 0.5° accuracy, and rugged design ensure reliable stabilization for defense, aerospace and industrial applications.
Payload Capacity: 150 kg
Moment of Inertia: 90 kg·m² (X, Y, Z axes)
Actuator Stroke: 300 mm
Dimensions: L 136 cm x W 136 cm x H 77 cm
| Excursion | Velocity | Acceleration | |
|---|---|---|---|
| Roll | ± 30° | ± 50°/s | ± 280°/s² |
| Pitch | ± 30° | ± 30°/s | ± 280°/s² |
Technical Specifications
- Power Supply: 400VAC± 10%, 3ph, 50/60Hz
- Gross Moving Load up to: 150 kg
- Actuator Stroke: 300mm
- Mass: 210 kg
- Operation Temperature: -10°...+50°
Applications
- Electro-optic System Stabilization
- Drone Landing Pad
- RCWS Stabilization
- Radar Systems Stabilization
- Antenna Systems Stabilization
FORM & FUNCTION
Stabilized Platform series delivers precise roll and pitch motion using servo-driven actuators. With payload capacities up to 300 kg, the system ensures stable performance, intuitive control via user interface, and reliable operation for testing, navigation, and industrial applications.
Core Capabilities
Provides accurate roll and pitch stabilization.
Delivers precise and stable motion control.
Optimizes motion for precise and stable control.
Simplified control via intuitive interface.
Ensures efficient data transmission.
Facilitates immediate response and adjustment.
SM300 STABILIZED PLATFORM
SM300 Stabilized Platform delivers advanced 2DOF motion stabilization, ensuring smooth and reliable control for navigation, testing, and industrial applications. Designed for high-precision performance, it is ideal for aerospace, marine, and defense sectors.
Payload Capacity: 300 kg
Moment of Inertia: 160 kg.m²
Same Performance Specifications: SMOTION150-E2D and SMOTION300-E2D share identical stabilization features, including precise roll and pitch motion with servo-driven actuators, real-time control, and user-friendly interface.
Payload Capacity: 300 kg
Moment of Inertia: 160 kg.m²
Same Performance Specifications: SMOTION150-E2D and SMOTION300-E2D share identical stabilization features, including precise roll and pitch motion with servo-driven actuators, real-time control, and user-friendly interface.
