SM500 Flight Simulator
SM500 Flight Simulator

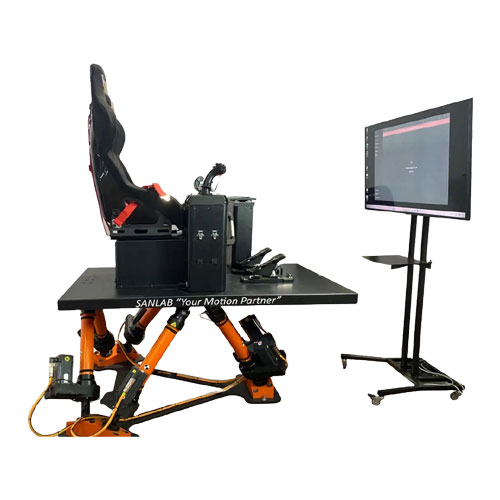

6DOF Flight Simulator is a high-precision motion platform designed to deliver realistic full-motion dynamics including pitch, roll, yaw, surge, sway, and heave. With advanced motion technology, seamless software integration, and instant response, it creates true-to-life flying sensations for simulation, training, and entertainment across professional and enthusiast applications.
Payload Capacity: 500 kg
Moment of Inertia: 250 kg.m² (X, Y, Z axes)
Actuator Stroke: 300 mm
Power Supply: 380VAC ±10%, 3ph, 50/60Hz
| Velocity | Acceleration | |
|---|---|---|
| Surge | ± 0.45 m/s | ± 5 m/s² |
| Sway | ± 0.45 m/s | ± 5 m/s² |
| Heave | ± 0.35 m/s | ± 6 m/s² |
| Roll | 40°/s | ± 300°/s² |
| Pitch | 40°/s | ± 300°/s² |
| Yaw | 50°/s | ± 500°/s² |
Compatible With
- DCS (Digital Combat Simulator)
- Prepar3D
- Custom software integration available
Applications
- Flight training simulation
- Pilot skill development
- Real-time flight dynamics
- Signal replication & validation
- Aerospace R&D test platform
FORM & FUNCTION
6DOF Flight Simulator delivers precise heave, roll, pitch, yaw, surge, and sway motion with advanced electro-mechanical actuators. Its robust design, smooth motion core, and flexible software compatibility ensure safe, accurate, and realistic simulation for both training and entertainment purposes.
Core Capabilities
Supports simulators from racing to flight.
Easy setup, oil-free design.
Integrates with custom games.
Instant motion feedback.
Full system integration.
Precise pitch, roll, and heave control.
