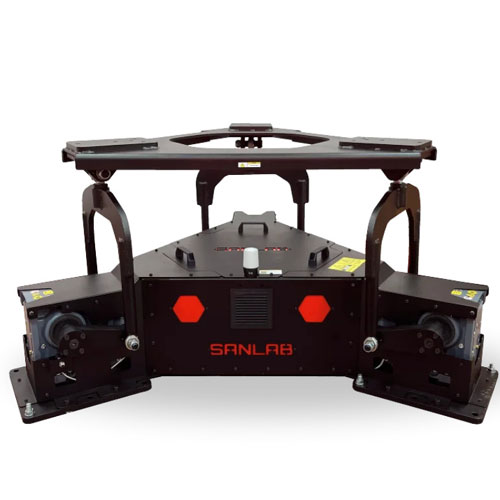

SMotion1000 – E3D is a precision-engineered 3DOF motion platform designed to simulate pitch, roll and heave movements with high accuracy and responsiveness. With a 1000 kg payload capacity and rugged mechanical design, it offers a reliable solution for testing, validation, and simulation in demanding industrial environments.

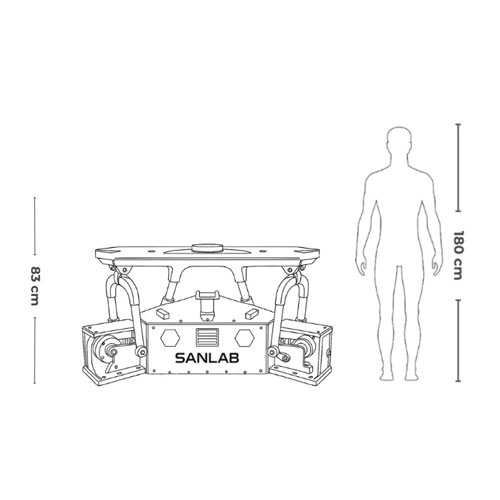

Dimensions: L1.79×W1.56×H0 .83m
Payload Capacity: 1000 kg
Moment of Inertia: 420 kg·m² (X, Y, Z axes)
Power Supply: 380VAC ±10%, 3ph, 50/60Hz
Performance Specifications
| Velocity | Acceleration | Excursion (Single Axis) | Excursion (Multi Axis) | |
|---|---|---|---|---|
| Heave | ± 0.51 m/s | ± 4.5 m/s² | -0.16m | 0.17m | -0.16m | 0.17m |
| Roll | 47°/s | ± 360°/s² | -19.00° | 19.00° | -19.00° | 19.00° |
| Pitch | 55°/s | ± 488°/s² | -16.40° | 16.40° | -22.50° | 21.50° |
FORM & FUNCTION
SMotion1000 – E3D generates precise heave, roll, and pitch motion using three servo-driven actuators. With a 1000 kg payload capacity, the system is controlled via user interface and protected by safety sensors.
Core Capabilities
Pitch, roll, and heave motion.
Synchronized linear movement.
Realistic motion via telemetry signals.
Simplified control via intuitive interface.
Stable under heavy loads.
Facilitates immediate response and adjustment.
